DC two-wire proximity sensor KJN30-25HC
✨Features
✅
Strong long-distance detection capability
✅
Rugged and durable, adapted to harsh industrial environments
✅
High reliability structural design
✅
Easy to install and highly compatible.
Reference Price
US$5~50
Prices vary depending on the configuration; please consult customer service for details.
Product Introduction
Designed for machine automation, conveyor systems, metal detection applications, and safety interlocking, the KJN30-25HC ensures dependable operation with a 120 mA load capacity, strong electrical insulation, and durable construction. Supplied with an M30 mounting nut and a 2-meter two-wire cable, it is a practical and reliable solution for industrial sensing needs.

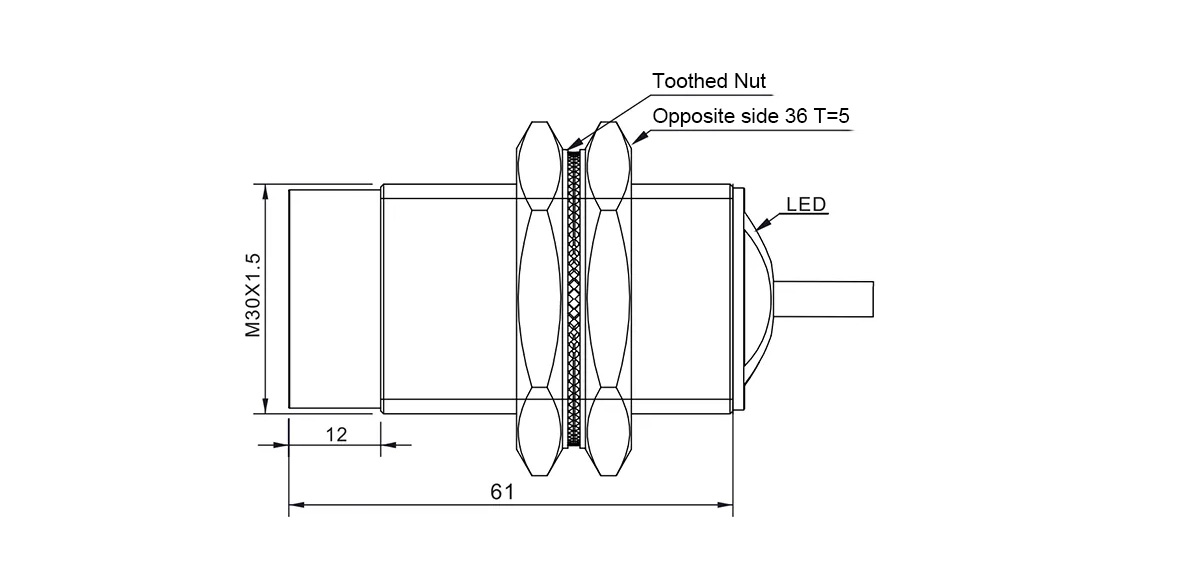

Size and Structure
Circuit diagram
| model | KJN30-25HC |
|---|---|
| Working principle | Inductive sensor |
| Case style | cylindrical |
| Installation method | Non-level |
| Detection distance | 25mm±10% |
| Thread specifications | M30 |
| Sensing surface material | PBT |
| Detected items | Metal sensor |
| indicator lights | Action indicator light: Yellow LED |
| Detection distance adjustment | None |
| Switch mode | NC |
| Output mode | Reed switch |
| External input | None |
| Switching frequency | 0.2kHz |
| Repeatability | 2% |
| Hysteresis (Retrogression/Expected Response) | 15% |
| Operating voltage | 10~60V DC±10% |
| Consume current | 3~100mA |
| residual voltage | <6.0V |
| Load current | ≤120mA |
| Leakage current | <0.8mA |
| Insulation resistance | Between the power terminals and the housing≥50MΩ（500VDC） |
| Pressure resistance | 1000VAC（50/60Hz），1 minute between power terminals and casing |
| Vibration resistance | 10~55Hz，amplitude1.5mm，X/Y/Z axes，2 hours each |
| Protection circuit | Short circuit protection |
| Operating ambient temperature | -25~75℃ |
| Working environment humidity | 35~85% |
| Protection level | IP67 |
| Connection method | 2m/2-wire cable |
| Size | M30x61.0mm |
| Material | Nickel-copper alloy+PBT |
| Weight | 0.12kg |
| Accessories | Nut M30x1.5 |
