17x17x28 square proximity switch
✨Features
✅
Durable IP67 Design: Rugged PBT housing withstands harsh environments from -25°C to +70°C.
✅
Full Circuit Protection: Integrated short-circuit, reverse polarity, and surge protection.
✅
High-Speed Response: Up to 800Hz switching frequency for precise, rapid detection.
✅
Wide Compatibility: 10-30VDC operating voltage with flexible NPN/PNP output options.
Reference Price
US$1.5-30
Prices vary depending on the configuration; please consult customer service for details.
Product Introduction
Engineered for precision and durability in industrial automation, this inductive proximity sensor features a high-quality PBT plastic housing with an IP67 rating, offering superior resistance to moisture, dust, and temperature fluctuations. Designed for non-contact metal detection, it supports both Flush (5mm) and Non-flush (8mm) mounting configurations with switching frequencies up to 800Hz, making it ideal for high-speed counting and positioning tasks. The sensor ensures operational safety with built-in protection against short circuits, reverse polarity, and voltage surges, while its wide 10-30VDC operating voltage and standard 2-meter PVC cable provide seamless compatibility with most global control systems.

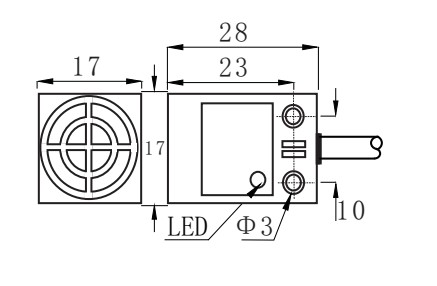

Size and Structure
Circuit diagram
| Parameter | Specification |
|---|---|
| Mounting | Flush / Non-flush |
| Sensing Distance (Sn) | Flush: 5mm / Non-flush: 8mm |
| Operating Voltage | 10 ... 30 VDC |
| Load Current | ≤ 200 mA |
| Circuit Protection | Short-circuit / Reverse Polarity / Surge Protection |
| Switching Frequency | Flush: 800 Hz / Non-flush: 500 Hz |
| Housing Material | PBT Plastic |
| Ambient Temperature | -25°C ... +70°C |
| Output Type | NPN / PNP |
| Protection Degree | IP67 |
| Connection | 2m PVC Cable |
