KJRF-A1 100-meter high-precision laser ranging
✨Features
Product Introduction
The KJRFA1 Series Laser Distance Sensor is a ruggedized, high-precision measurement solution designed for challenging industrial and outdoor applications. It stands out with its exceptional IP68 protection rating, allowing it to withstand complete submersion in water up to 5 meters depth, ensuring durability in sewers, dams, and outdoor sites exposed to heavy rain or flooding.
While many laser sensors struggle with low-reflectivity surfaces, the RFA1 is specifically tuned to measure black and dark targets, including coal piles, ash, and viscous black fluids, making it a perfect choice for level monitoring in the mining and energy sectors. The sensor utilizes a long-life, eye-safe visible red laser (>50,000 hours) and provides a measuring range of up to 100 meters.
Designed for quasi-static or slow-moving targets (<2m/s), the RFA1 offers a response time of 100ms. It supports a wide operating voltage (9-32VDC) and comes with a comprehensive array of communication interfaces—from RS485/Modbus for industrial networks to 4-20mA for process control systems—making it one of the most versatile sensors in its class.

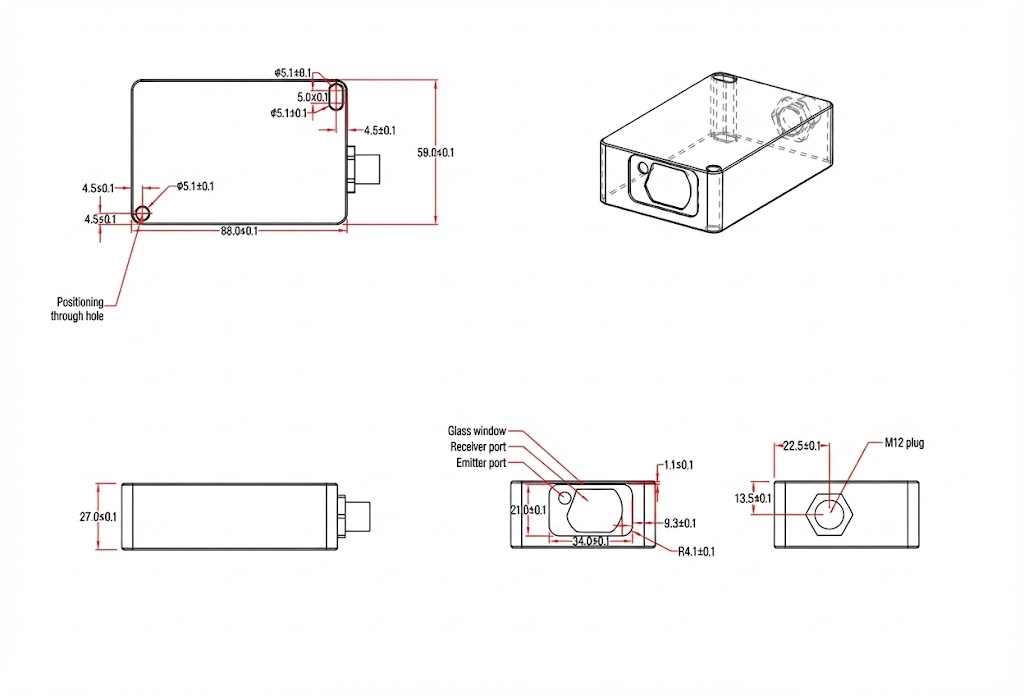

Size and Structure
| Parameter | Specification |
|---|---|
| Measurement range | 0.03 ... 5m（Repeatability±0.3mm）、0.03 ... 20m（Repeatability±0.5mm）、0.03 ... 100m（Repeatability±0.8mm） |
| Measurable Targets | Natural surfaces, Black objects (Coal, Coal powder, Black viscous liquids). (Note: Not suitable for transparent objects or mirror-like polished surfaces) |
| Outdoor Capability | Approx. 10m range under strong sunlight (for black glossy objects) |
| Light Source | Eye-safe Visible Red Laser |
| Laser Life | > 50,000 hours (Non-degrading output) |
| Beam Divergence | 0.5 mrad |
| Spot Size | 5mm @ 5m / 10mm @ 20m / 20mm @ 50m |
| Measurement Speed | Quasi-static / Low-speed (< 2 m/s) |
| Response Time | 100 ms |
| Operating Voltage | 9 ... 32 VDC |
| Data Interfaces | Digital: UART (TTL), RS232, RS485, RS422 ；Analog: 4-20mA, 0-5V, 0-10V (Selectable) |
| Protection Degree | IP68 (Submersible up to 5m depth) |
| Ambient Temperature | -20°C ... +65°C (Non-condensing) |
| Dimensions | 59 (W)*27 (H) *88 (L) |
| Weight | Approx. 150g |
